Description

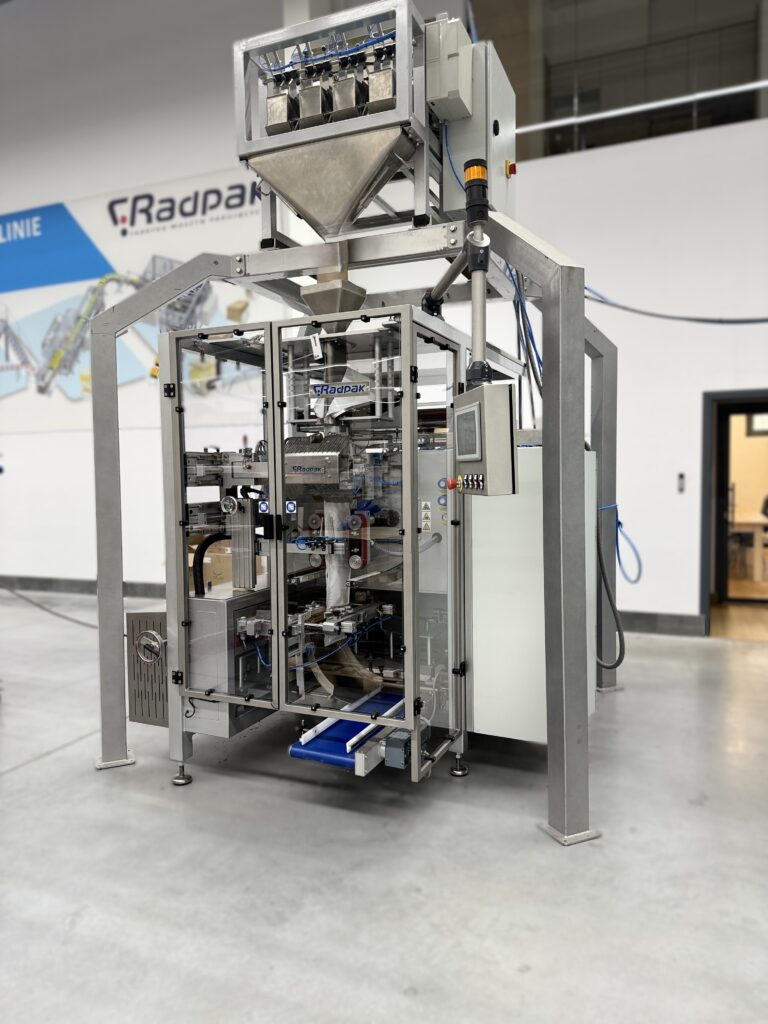

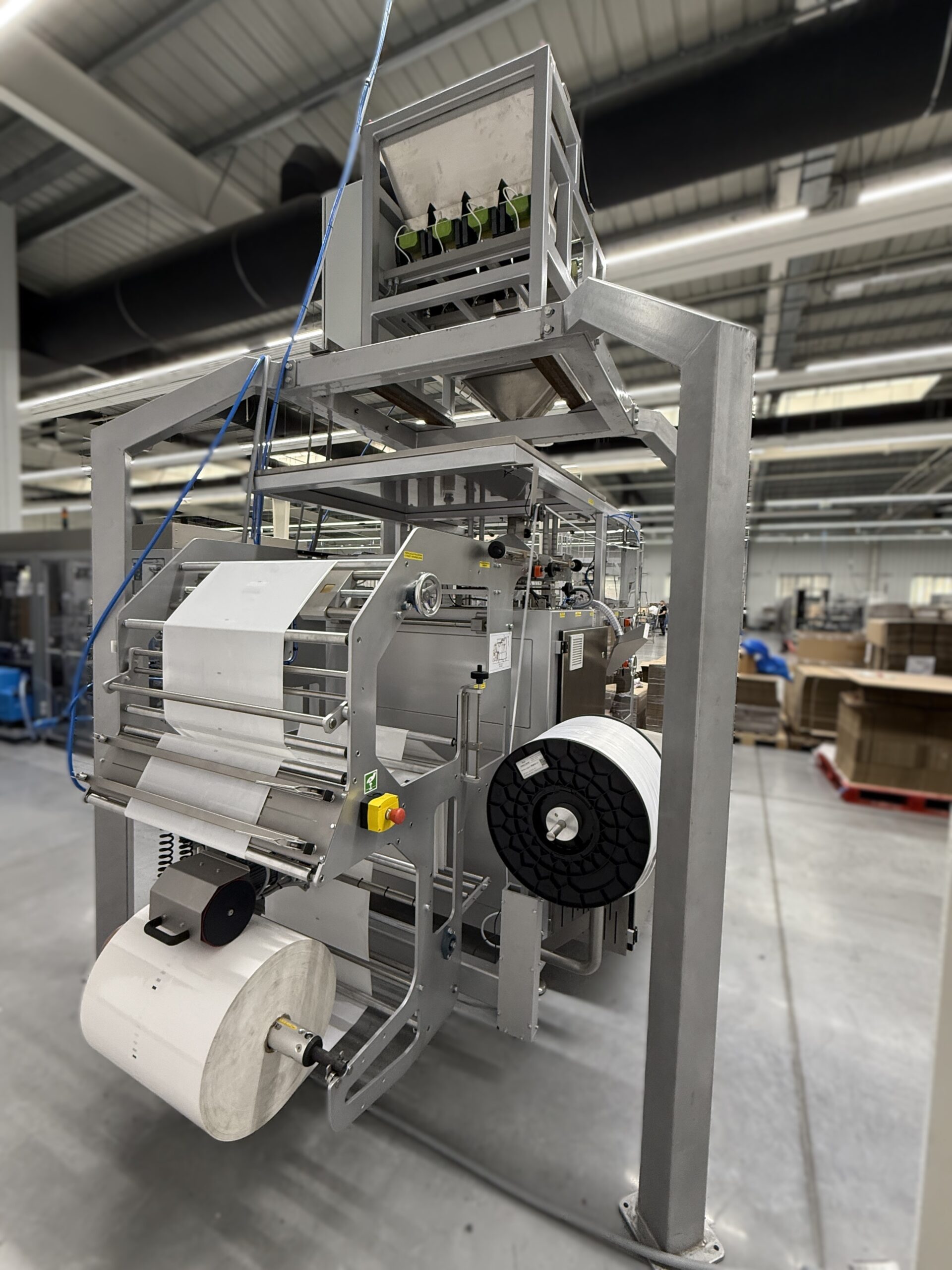

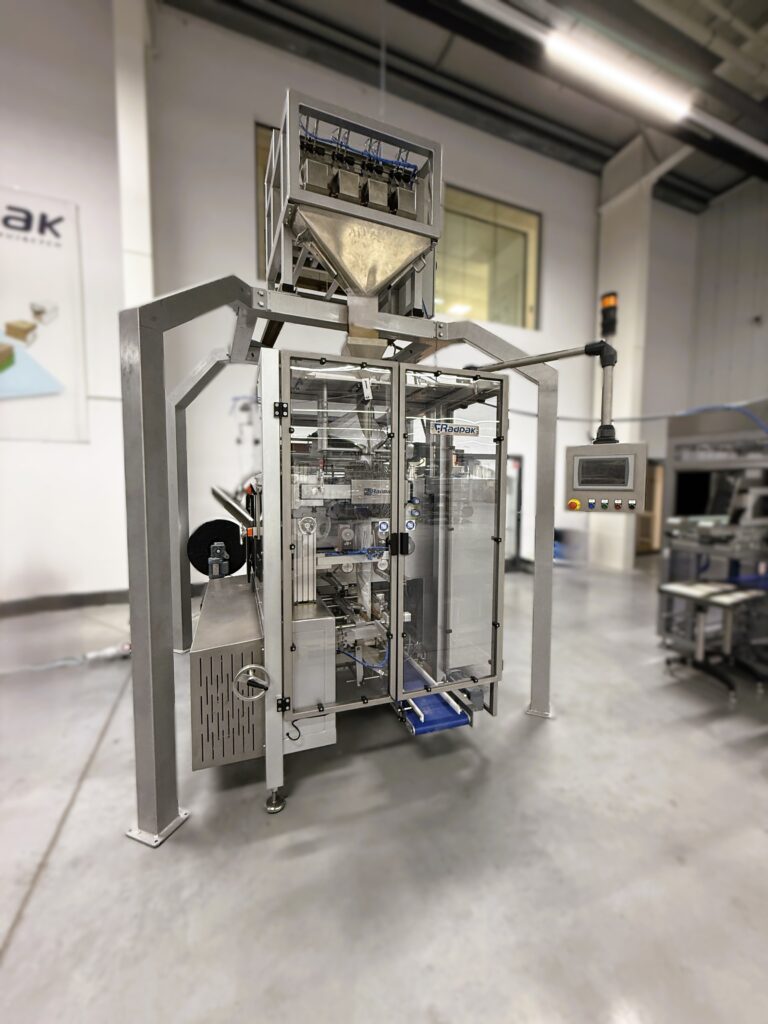

Automatic vertical machine for dosing and packing loose products into doypack bags and flat bags using an additional rotating horizontal jaw.

Specification

• – Heat-sealable laminate foils (foil sealable on both sides for doypack bags and on one side for flat bags)
• – Any other bag height requires a new forming tube
• – Possibility of forming sachets with a rolled bottom (with three welds)
• – PLC Control – Allen Bradley
• – Color display equipped with auto diagnostics and alarms for the operator.
• – Festo Pneumatics
• – Servo drives
• – Photocell, SICK sensors
• – Encoder for measuring the length of a foil bag without print
• Dangerous zones of the machine secured with limit switches on the front and side doors with automatic transition to STOP

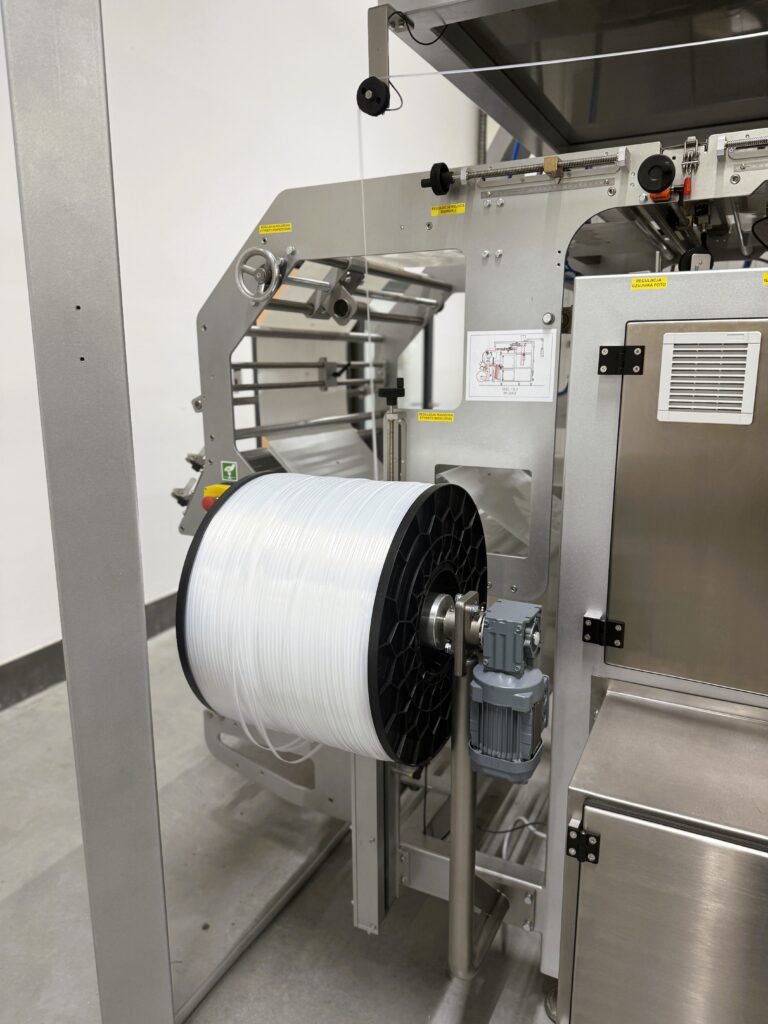

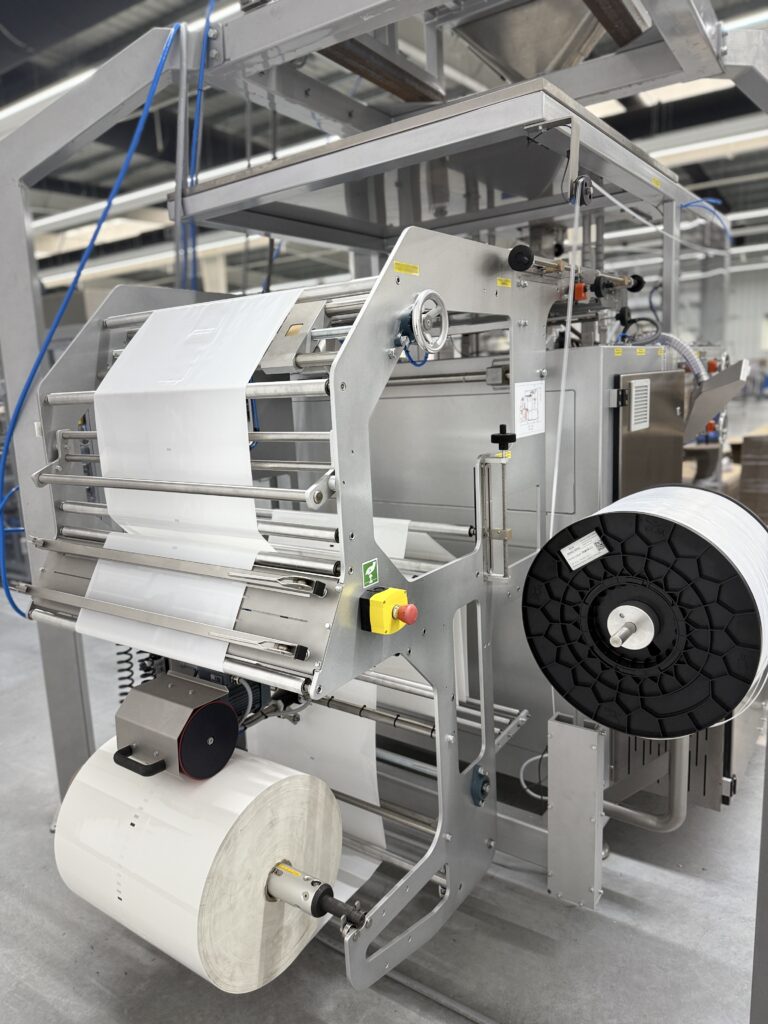

• – Automatic foil unwinder with a tensioning beam equipped with sensors ensuring automatic foil unwinding and registration of its end
• – Automatic foil guiding on the forming collar – system equipped with 2 SICK photocells and a gear motor
• – Pneumatic shaft for quick film roll replacement
• – Upper machine cover protecting the foils from contamination
• – A short conveyor that collects the finished bags from under the machine
• – Painted construction

Machine in stock – available for immediate purchase!

You need a machine for now?
We have a solution! Our device is available immediately, fully functional and ready for immediate launch.
Don't wait - invest today and start operating without unnecessary downtime.

📞 Call or write to learn the details of the offer!
