Description

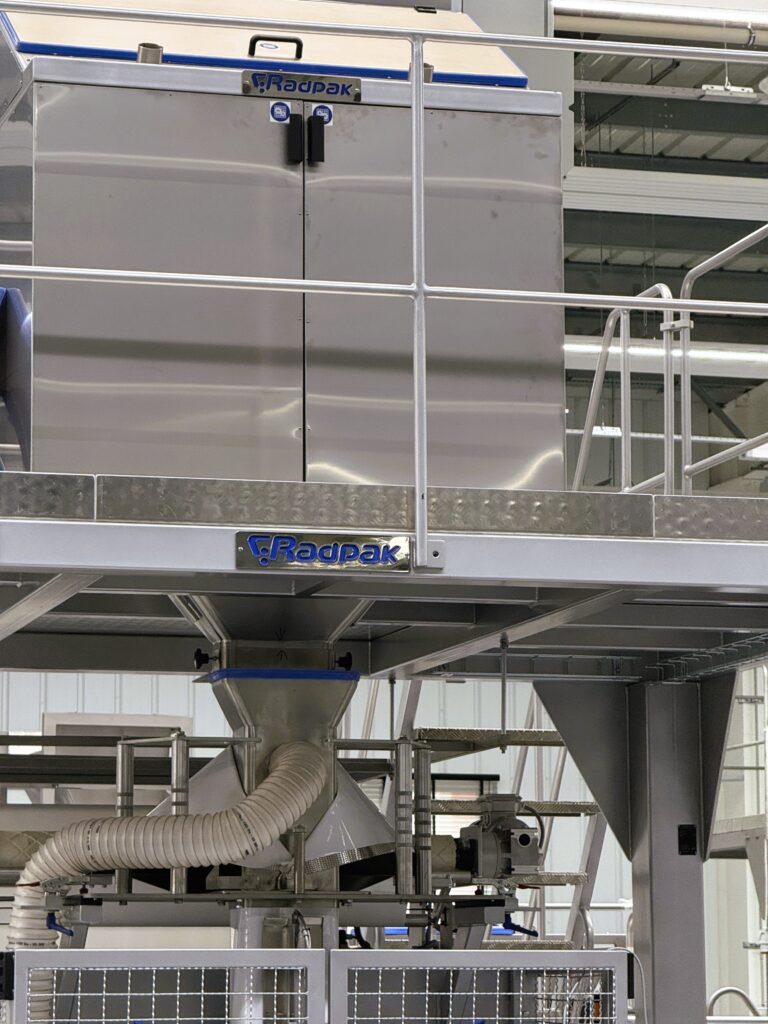

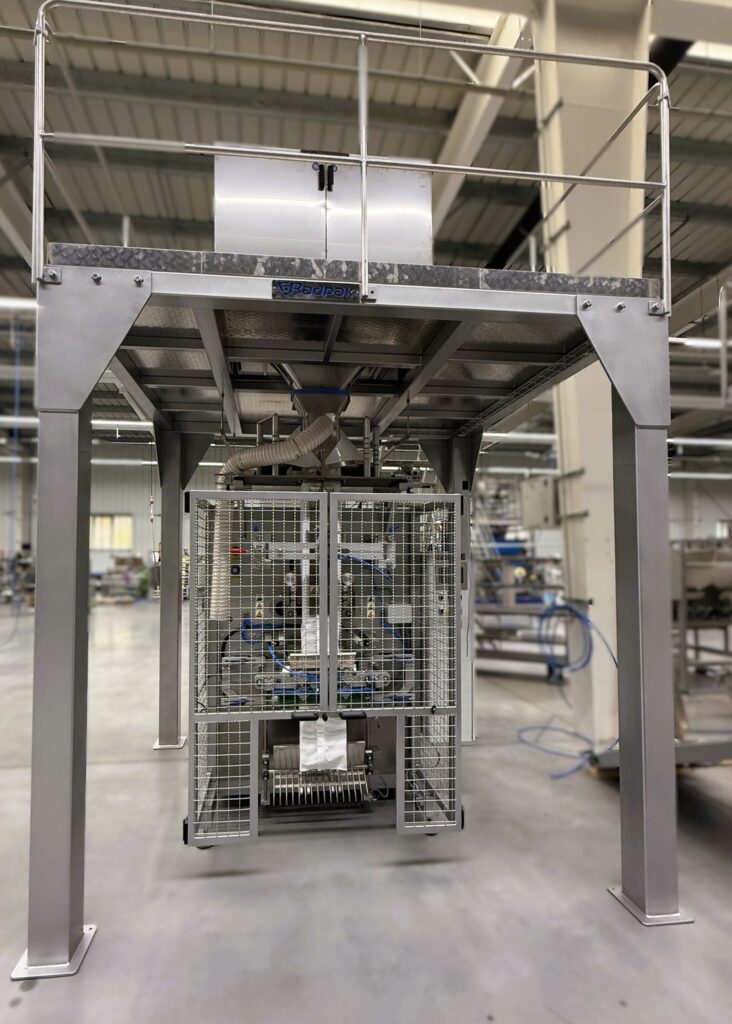

An automatic line for dosing and packaging bulk products into flat or flat side-gusset bags. The product is measured in a pre-set dose using a weighing dispenser and then fed into the formed bag. Finally, the top of the bag is sealed and cut off.

Specification

• – Machine working in start-stop mode, heat-stable welding of laminated foils, PP/PE,
• – 1 tube for forming the bag
• Every different bag width requires a new forming tube
• – PLC Controller – Allen Bradley
• – SEW/Nord gearmotors
• – Encoder for measuring bag length

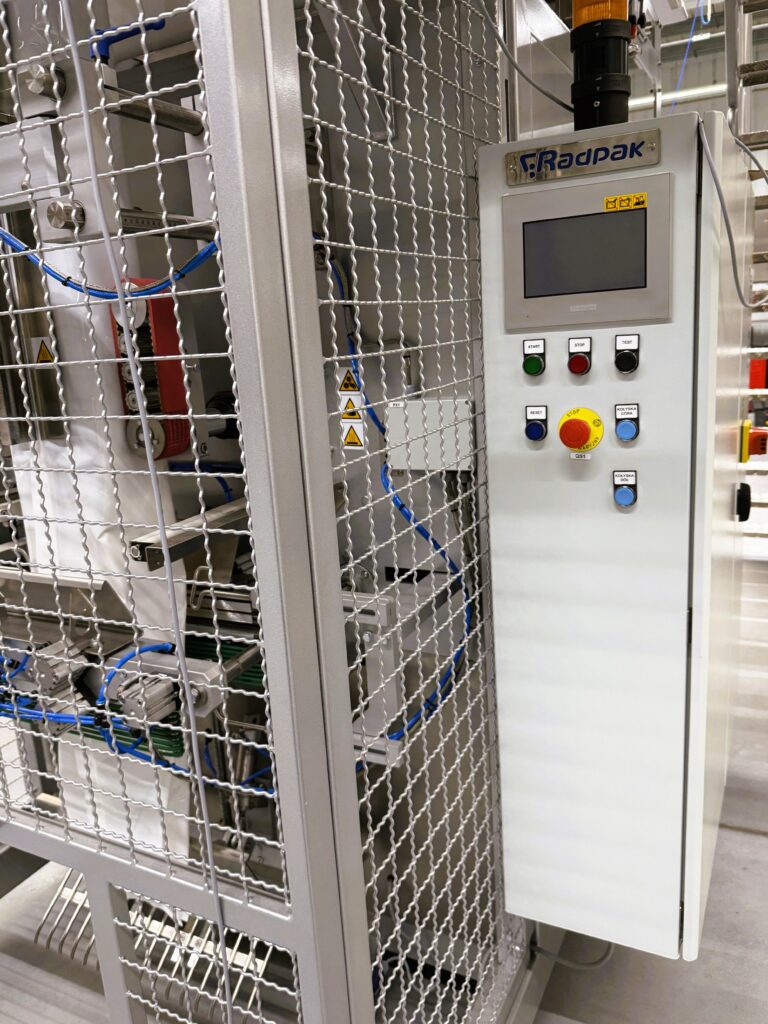

• – Color touchscreen equipped with alarms and recipes for the operator
• – Festo pneumatics with air preparation station (regulator, filter, manual valve, shut-off valve)
  12mm connection – the machine automatically detects too low pressure and automatically
  goes into STOP displaying the appropriate alarm on the operator panel
• – SICK photocell for reading the brand print on the foil
• – Danger zones of the machine secured by limit switches on the front door and
  side with automatic transition to STOP

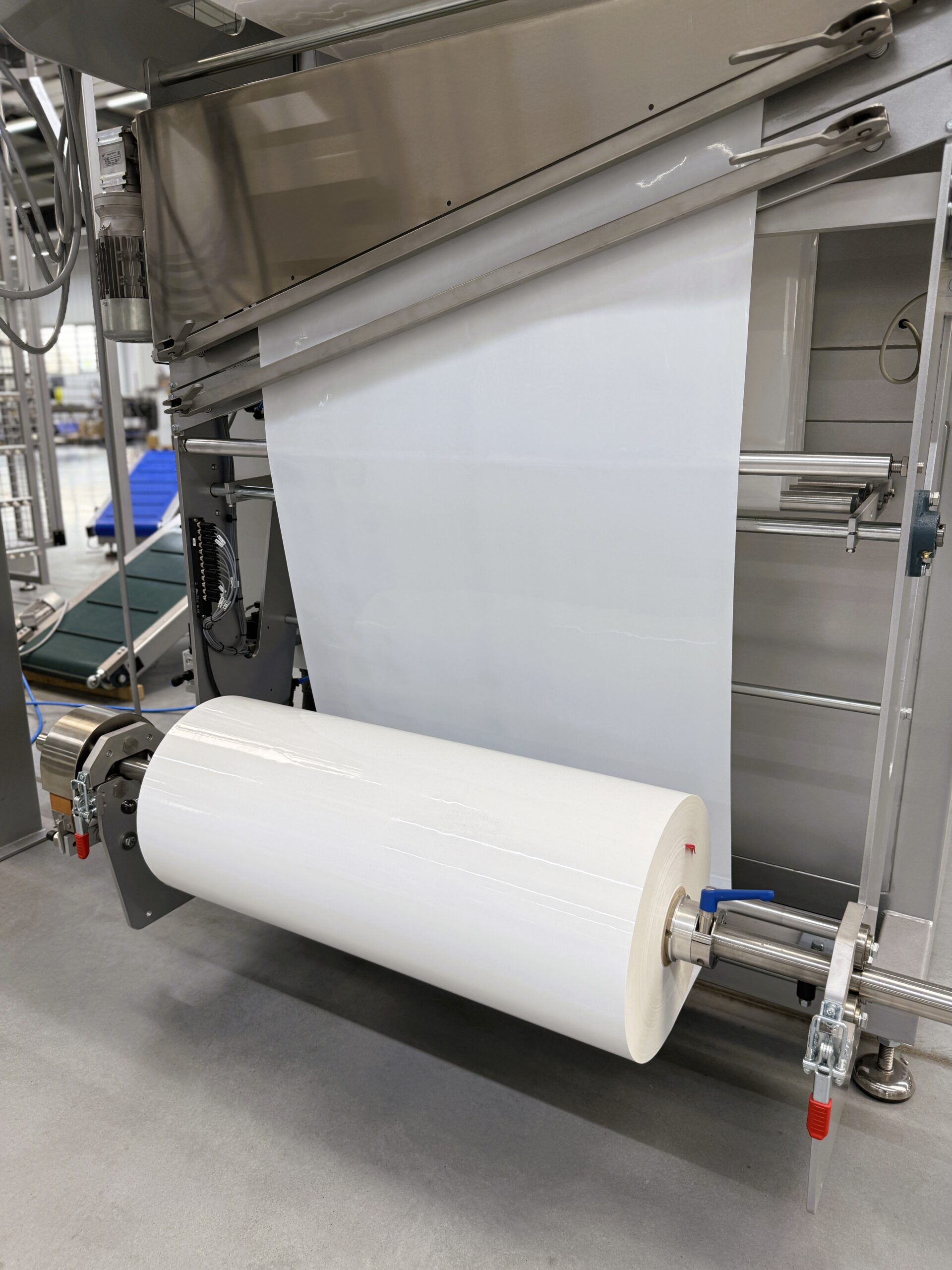

• – Automatic foil unwinder equipped with:
  Tension beam with sensors ensuring proper unwinding of the foil
  o Low and too low foil level sensor – signaling low foil level on the column
  light and sound and operator panel and automatic machine stop at the end of the foil
• – Automatic film guiding on the forming collar – system equipped with 2 photocells
  SICK and DC motor
• – Horizontal welding jaw closing mechanism driven by an asynchronous motor
  SEW/Nord
• – Quick foil connection system using adhesive tape
• Machine top cover for protecting film from dust
• – Powder-coated construction
• – Elements in contact with the product are made of stainless steel

Machine in stock – available for immediate purchase!
